Contactor And Relay

• Ambient Temperature
• -20C to +60C

• Coil Voltage
• Not applicable (thermal relay type)

• Color
• Black/Grey

• Contact Form
• 1NO + 1NC

• Contact Load
• Other, 10A

• Contact Material
• Silver alloy

• Contact Resistance
• 50m

• Dielectiric Strength
• 2.5kV for 1 min

• Dimension (L*W*H)
• Approx. 75 x 45 x 65 mm

• Insulation Resistance
• >100 M at 500V DC

• Mechanical Life
• >1,000,000 operations

• Operate Time
• Within 2s at 6 times rated current

• Power Consumption
• Low (typ. <3VA)

• Product Type
• Thermal Overload Relay

• Protect Feature
• Other, Overload & phase-failure protection

• Rated Voltage
• 690V AC

• Size
• Other, Standard compact

• Supply Terminal
• 3-phase

• Terminal Type
• Other, Screw terminals

• Theory
• Other , Bimetal thermal detection

• Usage
• Thermal protection for electric motors

• Weight
• Approx. 170g

• Working Temperature
• Up to 55C

• Ambient Temperature
• -25C to +55C

• Coil Power
• 7-10 VA

• Coil Voltage
• 110V/220V/415V AC

• Color
• Black and Grey

• Contact Form
• 3NO + 1NC

• Contact Load
• Other, 255A AC3 at 415V

• Contact Material
• Silver Alloy

• Contact Resistance
• 20 m

• Dielectiric Strength
• 2500V AC for 1 min

• Dimension (L*W*H)
• Approx. 140 x 100 x 135 mm

• Insulation Resistance
• > 100 M at 500V DC

• Mechanical Life
• > 10 Million Operations

• Operate Time
• < 30 ms

• Power Consumption
• 10 VA (Coil Consumption)

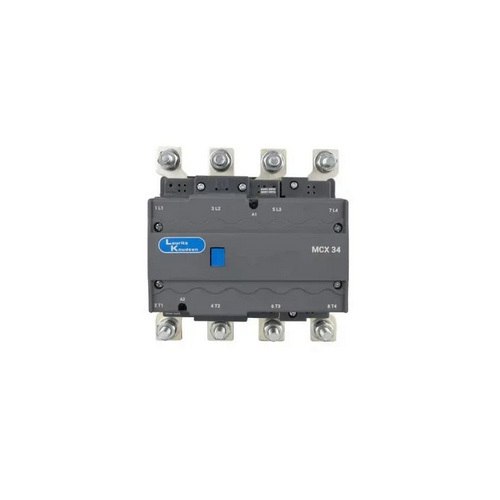

• Product Type
• MCX Power Contactor

• Protect Feature
• Other, IP20 Finger Protection

• Rated Voltage
• 415V AC

• Size
• Other, Standard Industrial Size

• Supply Terminal
• Three Phase

• Terminal Type
• Other, Screw Terminal

• Theory
• Other , Electromagnetic Contactor

• Usage
• Power Switching and Control

• Weight
• Approx. 2.4 kg

• Working Temperature
• -10C to +40C

• Ambient Temperature
• -10C to +55C

• Coil Power
• N/A (thyristor control output)

• Coil Voltage
• N/A (thyristor control output)

• Color
• White/Gray

• Contact Form
• Solid state relay compatible (no physical contact)

• Contact Load
• Other, Compatible with thyristor switching relays

• Contact Material
• No moving contacts (Solid State/Relay Control)

• Contact Resistance
• N/A (solid state output)

• Dielectiric Strength
• 2kV AC for 1 min between inputs and housing

• Dimension (L*W*H)
• Approx. 144 mm x 144 mm x 90 mm

• Insulation Resistance
• >100 M at 500V DC

• Mechanical Life
• More than 10 million operations

• Operate Time
• Less than 50 ms per step

• Power Consumption
• Less than 10 VA

• Product Type
• 15 Step APFC Controller for Thyristor Switching Relay

• Protect Feature
• Other, Over-voltage, under-voltage, and harmonic alarms

• Rated Voltage
• 230V AC (10%), 50/60 Hz

• Size
• Other, Standard panel mount

• Supply Terminal
• Rear panel terminals

• Terminal Type
• Other, Screw type terminals

• Theory
• Other , Microprocessor based control

• Usage
• Automatic Power Factor Correction (APFC) in electrical panels

• Weight
• Approx. 700 grams

• Working Temperature
• 0C to +50C

• Ambient Temperature
• -25C to +60C

• Coil Power
• Approx. 2.5 W

• Coil Voltage
• 220V AC

• Color
• White and grey

• Contact Form
• 4NO+4NC

• Contact Load
• Other, 6A at 250V AC

• Contact Material
• Silver alloy

• Contact Resistance
• <100 m

• Dielectiric Strength
• 2,000V AC for 1 min between coil and contacts

• Dimension (L*W*H)
• Approx. 45 x 45 x 82 mm

• Insulation Resistance
• >100 M (at 500 V DC)

• Mechanical Life
• 10 million operations

• Operate Time
• <= 20 ms

• Power Consumption
• Approx. 2.7VA

• Product Type
• Auxiliary Contactor Relay

• Protect Feature
• Other, Finger protection IP20

• Rated Voltage
• 220V AC

• Size
• Other, Standard module size

• Supply Terminal
• Top and bottom terminals

• Terminal Type
• Other, Screw terminal

• Theory
• Other , Electromagnetic relay

• Usage
• Control circuit, auxiliary switching

• Weight
• Approx. 140 g

• Working Temperature
• -25C to +60C
